LAMPIZATOR

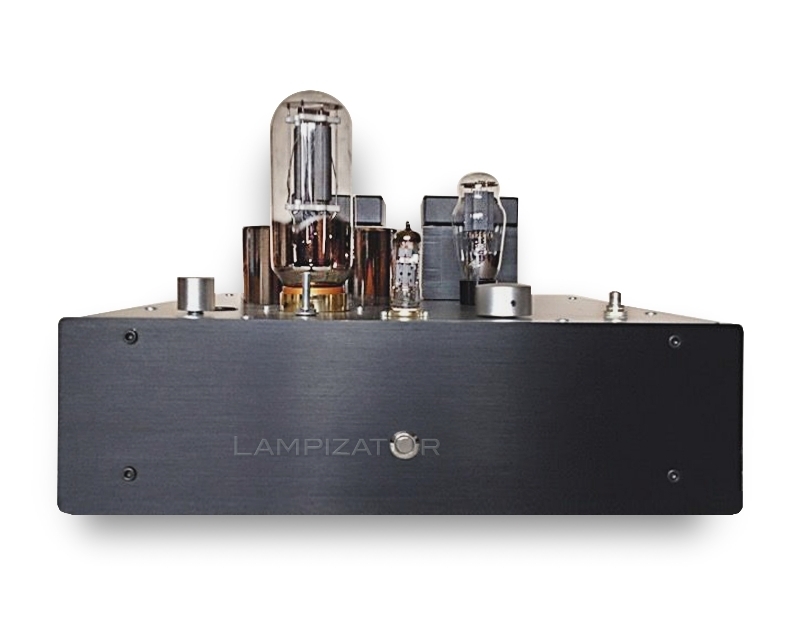

211 SE - Mono Amplifier

TECHNICAL HIGHLIGHTS

  • Single ended triode operation from input to output

  • Pure Class A

  • Zero feedback, neither local nor global

  • Zero solid state parts in audio circuits

  • Unregulated and overspecified supplies

  • Separate transformers for each task (three in total per side)

  • Short signal path - from RCA to pot - 2 inches of silver wire, same  from pot to first tube,  same from the first to the second tube and a hop across one capacitor to main tube without additional wiring

  • Power tube bias current is monitored on analog needle meter

  • No need for triode matching as the bias is set manually

  • There is a possibility to compensate aging drift on power tubes

  • Pre-heating operation mode for tube (and for electricity saving)

  • Pots can be bypassed completely by toggle switch for the “power amp” operation mode

View All LAMPIZATOR Products

SPECIFICATIONS :

  • Amplifier type : Single Ended triode mono block integrated amp (no need for a preamp)
  • Output power : 20 WPC single ended, pure class A

  • Power consumption : 165 WPC on idle, 75 W on pre-heating (per each block)

  • Power Tube : 211 triode
  • Driver : White config E182CC
  • Input tube : ECC40
  • Rectifier tube : 5C3S
  • Input impedance : 90 K
  • Output impedance (speakers recommended) : 8 ohm
  • Output transformer : OGONOWSKI / Lampizator
  • High Voltage transformer : Ogonowski (using audio output transformer core )
  • Biasing : manual (with exposed pot and meter)
  • Volume : Stepped input ladder switch (24 SMD resistor pairs)
  • Power transformers total capacity : 700 VA. 3 transformers in total
  • Rectification : two separate rectifiers for High Voltage- one for 900 V (silicon) and one for 400 V (5C3S tube)
  • Anode supply : 900 V DC
  • Input topology : one RCA SE
  • Biasing range : -30 to -140 V DC (covers all 211 types)
  • Front panel colors : Silver or Anodized black
  • Size : 43cm[W] x 13cm[H] (plus tubes 20cm) x 52cm[D]
  • Weight [per block] : 29kg net, 35kg gross
  • Warranty : 5 years (excluding tubes)
