LAMPIZATOR

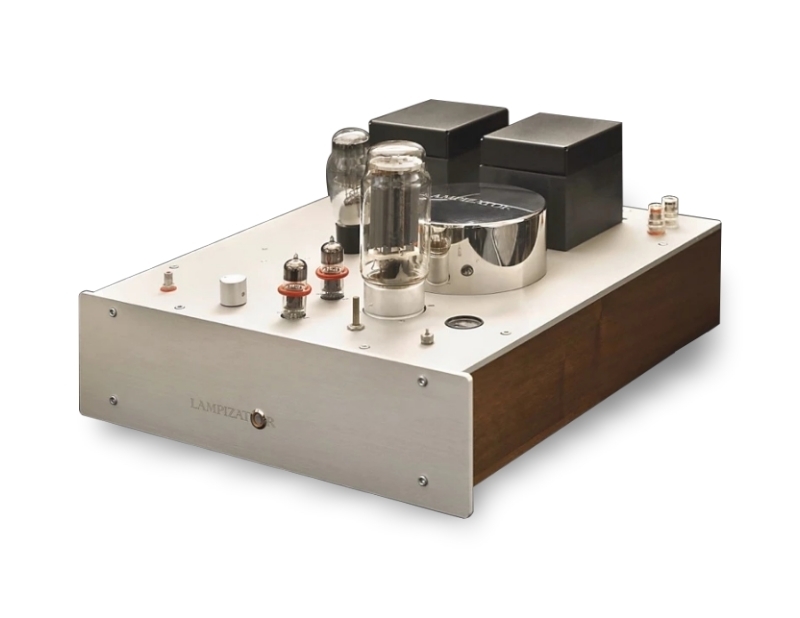

GM70 SE Mono Amplifier

TECHNICAL HIGHLIGHTS

  • Single Ended triode mono block integrated amp (no need for a preamp)
  • The most powerful DHT GM70 from Soviet Union

  • Combined power with musicality, connection, emotional involvement, and intimate closeness
  • Hand made, point to point wiring
View All LAMPIZATOR Products

SPECIFICATIONS :

  • Amplifier type : Single ended triodes in zero feedback scheme
  • Power tubes : Directly heated GM70 triode pair per channel
  • Output : Ultra thin laminated steel SE (gapped) transformer
  • Input topology : Single ended noval triode input
  • Driver : White follower super low impedance driver 6H6P in ture no feedback mode
  • Signal input : RCA SE, monophonic per mono-block
  • Volume control : Resistor ladder logarythmic 24 step dual mono true balanced, <1% tolerance
  • Adjustements : De-humming cathode pot for GM70. Bias. Volume.
  • Bias : Manual bias with negative voltage potentiometer and analog current meter
  • Tube compliment : Each amp has : 1 x GM70 triodes, 2 x 6H6P dual triodes, E88CC input dual triode, Rectifier diode 5R4 (for samll tubes power)
  • Speaker compliment : 4 & 8 ohm, 16 ohm by request
  • Output power : 20 Watts @ 8 ohm
  • Power consumption : 195W per block
  • Front panel colors : Silver or Anodized black
  • Size : 43cm[W] x 13cm[H] (plus tubes 20cm) x 52cm[D]
  • Weight [per block] : 25kg net, 35kg gross
  • Warranty : 5 years (excluding tubes)



REVIEWS :

MATEJ ISAK / MONO AND STEREO
