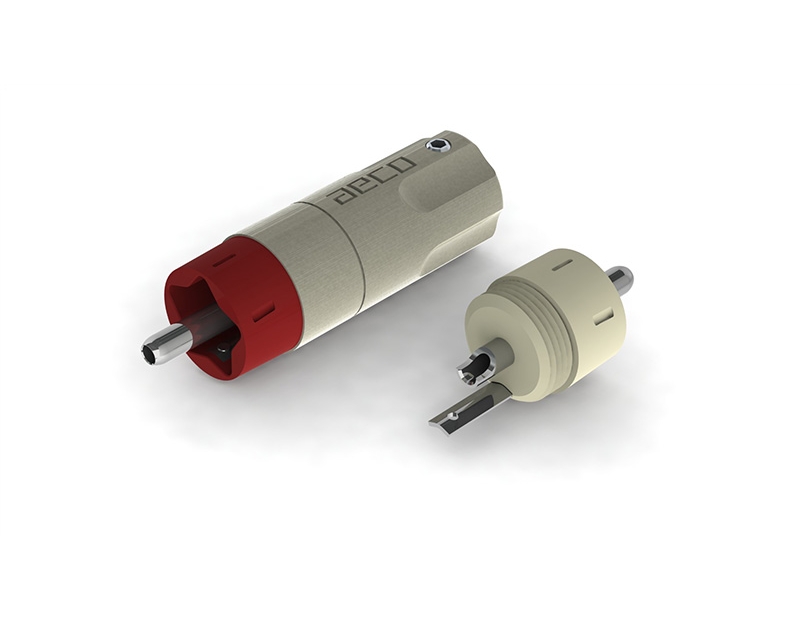

ARP-4045R (Rhodium-Plated) RCA Plug

TECHNICAL HIGHLIGHTS

  • The conductor is made from high- purity copper (Tellurium Copper) with Rhodium plating (no nickel base)

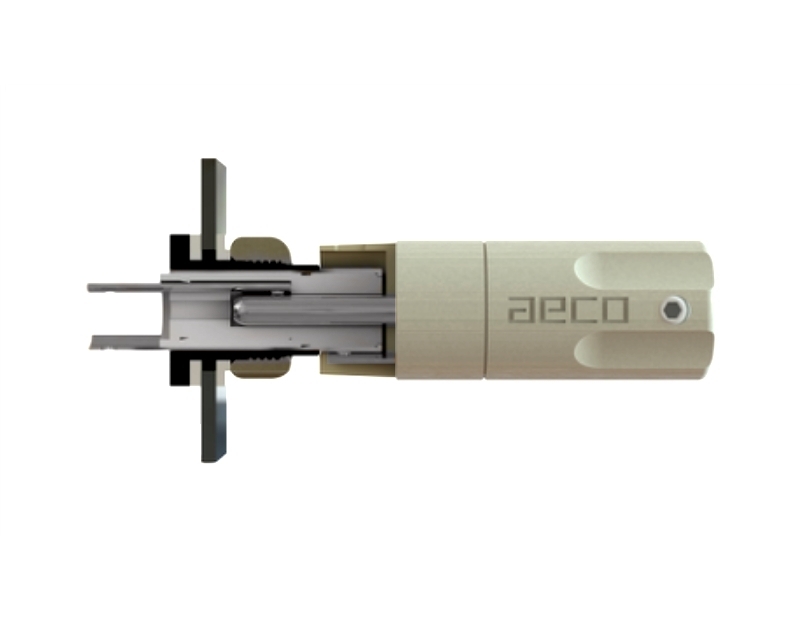

  • Use one point conduction instead of coaxial conduction
  • The "STAR" modeling use the characteristics of Nylon composite material can provide sufficient flexibility and clamping force when connected with the jack
  • The cable hole can be adjusted to 8.5mm or 10mm through the POM sleeve
  • Hair-line surface treatment show the high quality of design techniques



Price: HKD 310.00 / 4pcs-set

View All AECO Products

Material :
ARP-4045 / ARP-4045R / ARP-4045S
Contact Pin:Tellurium Copper(#C14500 / copper contains over 99%)
Grounding:Copper (#C1100 / copper contains over 99.5%)
ARP-4055
Contact Pin: Pure Silver (silver contains over 99.9%)
Grounding: Pure Silver (silver contains over 99.9%)

Body: Glass fiber reinforced nylon (Red / White)
Shell: Brass alloy (#C3604)
Sleeve: POM
Screw: Iron

Finish :
ARP-4045
Contact Pin: 10u" Gold plating (no nickel base)
Grounding: 10u" Gold plating (no nickel base)
ARP-4045R
Contact Pin: Rhodium plating (no nickel base)
Grounding: Rhodium plating (no nickel base)
ARP-4045S
Contact Pin: 120u" Silver plating (no nickel base)
Grounding: 120u" Silver plating (no nickel base)​
ARP-4055
Contact Pin: none
Grounding: none

Shell:  Satin nickel plating with hairline surface treatment
Screw: Nickel plating

Electrical Characteristics :
Contact resistance < 0.3 mOhm (It was test by ARJ-4043.)

Dimension :
Biggest OD 13.7mm
Cable hole
Sleeve is contained in finished product 8.5mm.
Sleeve is not contained in finished product 10.5mm.
Total Length 46.4mm

Packing :
Vacuum Bag(4Pcs/1Set)

Recommend soldering temperature :
Temperature Soldering Iron, please keep 380 degree within 5~8 second.
Temperature Soldering Iron, please keep 360 degree within 9~13 second.
Temperature Soldering Iron, please keep 340 degree within 13~18 second.
Temperature Soldering Iron, please keep 320 degree within 19~25 second.

Product production process comply with RoHS.

Product made new TW patent No. D158416.
