SB Acoustics
TW29TXN-B (碳纖膜)
TeXtreme® Line

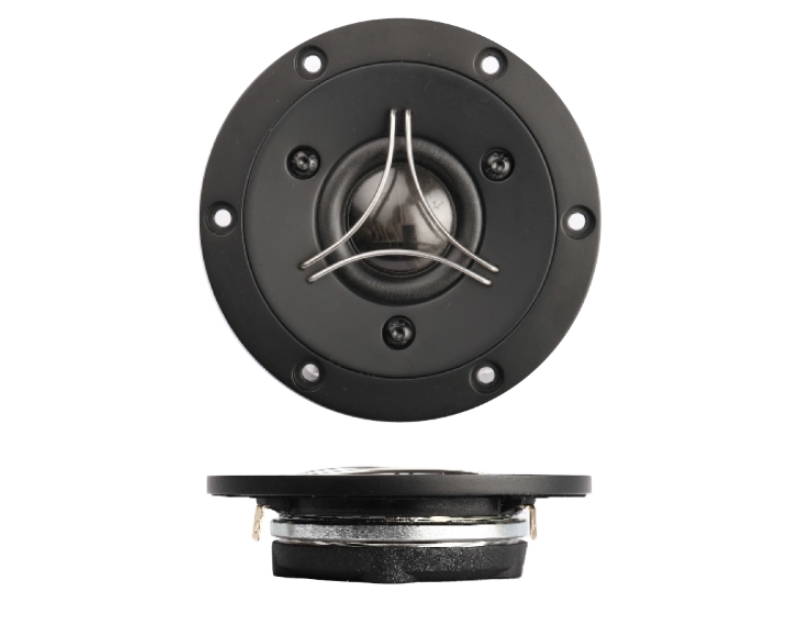

Satori 29mm TeXtreme® DOME TWEETER
- Advanced TeXtreme® dome
- Two part aluminium faceplate with integrated mechanical decoupling
- Dual balanced compression chambers for improved dynamics
- Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
- High saturation neodymium motor system with T-shaped pole piece for lower distortion
- Non-reflective cast aluminium chamber with optimized damping for improved dynamics
- Shallow flow optimized magnet structure for optimum coupling to rear chamber
- CCAW voice coil for low moving mass
- Long life silver lead wires
- Low resonance frequency for extended range
Engineered in Denmark, Made in Indonesia
丹麥設計, 印尼製造
Price: HKD 2,300.00 / pc
Sensitivity (2.83V/1M) : 96dB
Nominal Impadance : 4 ohm
Frequency response : See graph
Resonance frequency [fs] : 650 Hz
Nominal power handling RMS : 80W*
*(high-pass Butterworth, 2600 Hz, 12 dB/oct)
Magnet type : Neodymium magnet
Net weight : 0.4 kg
DOCUMENT DOWNLOAD
SATORI-TW29TXN-B_Datasheet
