HIQUPHON
OW 3

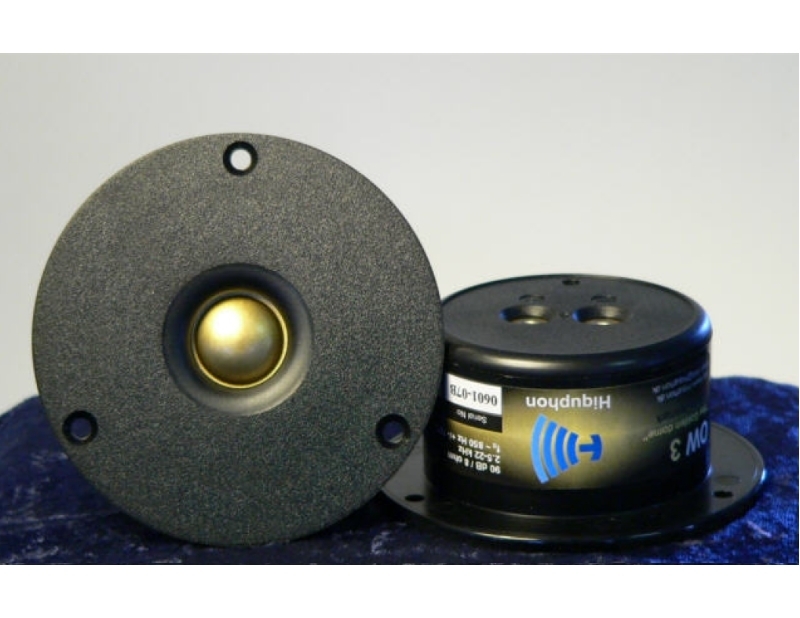

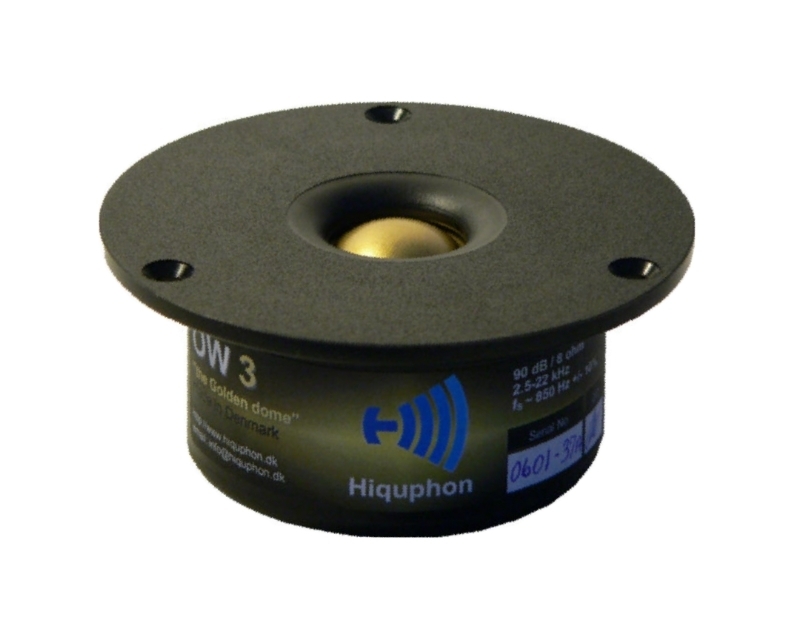

20 mm Textile Golden Dome Tweeter
- Featuring ”Gold” dome for unique design
- Very smooth frequency linearity and excellent phase linearity
- Smooth roll-off at low and high frequencies
- Low and well damped resonance frequency
- Well controlled damped low frequency response, soft raising
- Very broad-banded (2 kHz to 25 kHz, nominal –3 dB)
- Fast settling transient response (due to low mass and well damping)
- Very low distortion
- A-periodic damped moving system
- Exponential phase-correction, semi horn-loaded
- Saturated rounded magnet gap for low magnetic distortion
- Perfect sealed housing
- Heavy duty connectors for 2.5 mm lead wire, non-vibrating
- Large soldering joints using large-surface copper plated PCB inside
- Shock absorbing construction (due to special plastic housing)
- Beautiful sound capabilities
Matched pairs From Denmak
Price: HKD 3460.00 / pair 對
Sensitivity (2.83V/1M) : 90dB
Nominal Impadance : 8 ohm
Resonance frequency [fs] : 900 Hz
Nominal power handling RMS : 100W (w/-12dB oct crossover)
Gross weight : 0.36 kg
DOCUMENT DOWNLOAD
OW3-spec
