SPEAKER DRIVERS 喇叭單元
BlieSma

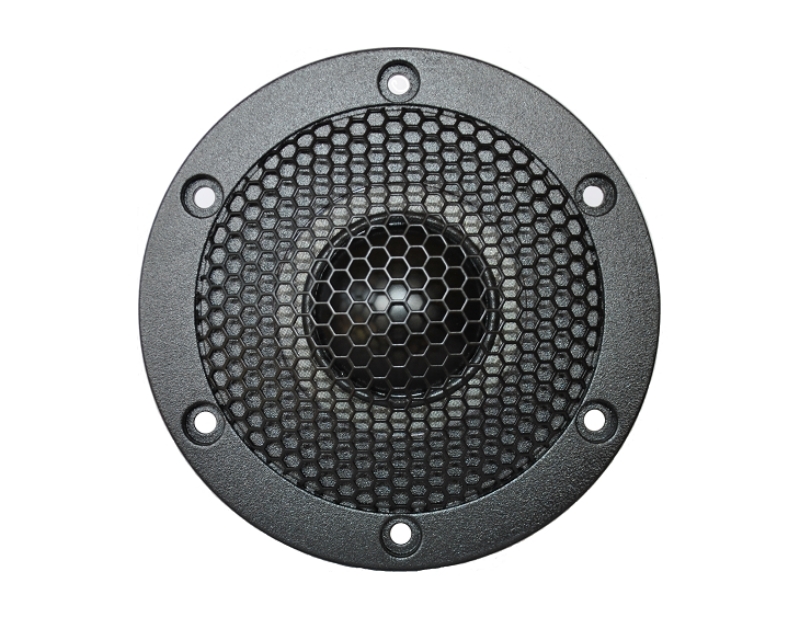

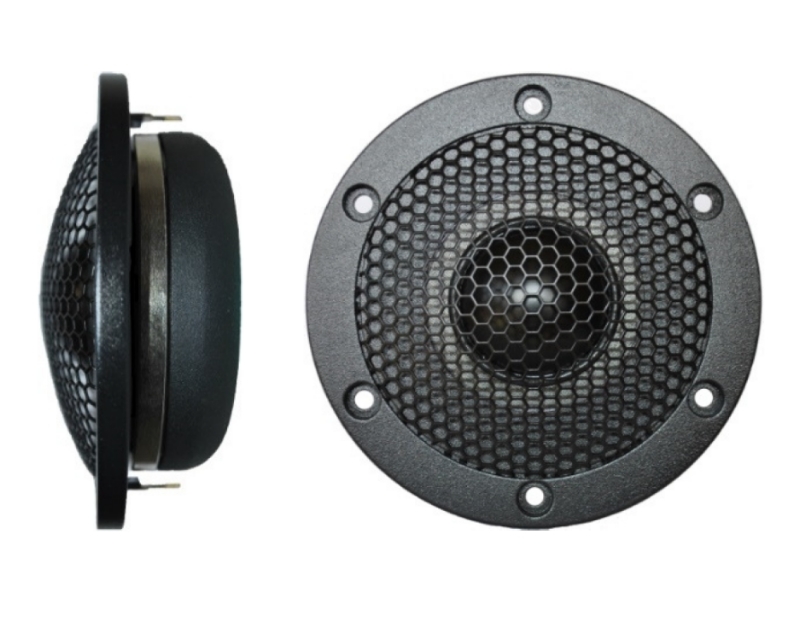

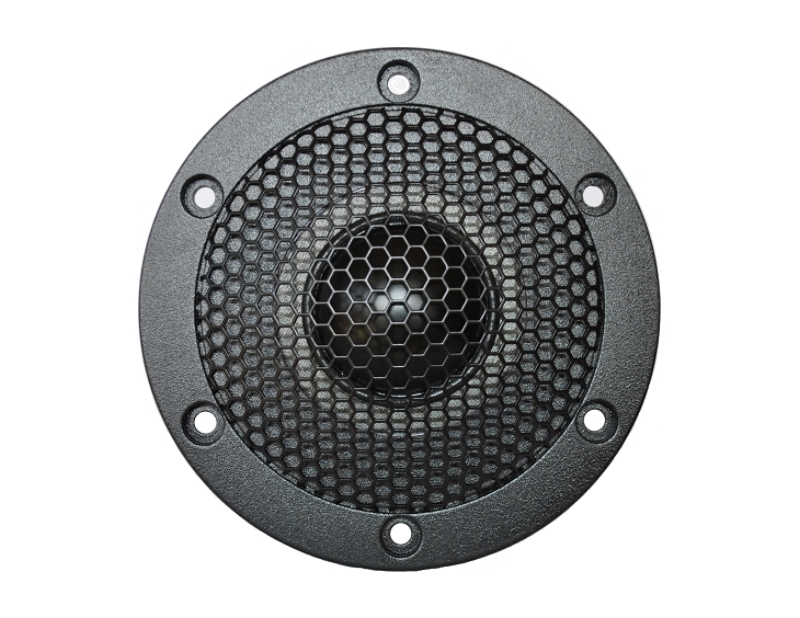

T34A-4 (鋁鎂合金膜高音)

34mm Aluminium-Magnesium Alloy Dome Tweeter

鋁鎂合金膜高音



Features :

  • 34mm Aluminium-Magnesium Alloy dome with variable thickness for ultrasonic first breakup mode
  • Extremely low moving mass for better transient response and higher efficiency
  • Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
  • 3 mm linear excursion and large vent channel for undistorted low frequency operation
  • Narrow surround for less "soft dome" coloration
  • Flush mounted surround and rear mounted magnet system for flat frequency response and wide off-axis response
  • No ferrofluid for improved dynamics
  • Underhung voice coil wound on titanium former
  • Flexible and lightweight lead wires made in Denmark
  • Thick aluminium powder coated flange
  • Aluminium rear chamber with natural wool damping
  • Gold plated wire terminals
  • Recommended frequency range 1.3kHz-35kHz



Made In Germany 德國製造



Price: HKD 6,100.00 / pair 對

View All BlieSma Products

Specifications :

Sensitivity (2.83V/1M) : 96dB

Nominal Impadance : 6 ohm

Recommended frequency range : 1.3kHz - 35kHz

Resonance frequency [fs] : 790 Hz

Nominal power handling RMS : 80W (w/ 2.5kHz 2nd order crossover)

Magnet type : Neodymium motor system with copper sleeve

Net weight : 0.28 kg

DOCUMENT DOWNLOAD
T34A-4_Spec
