AECO

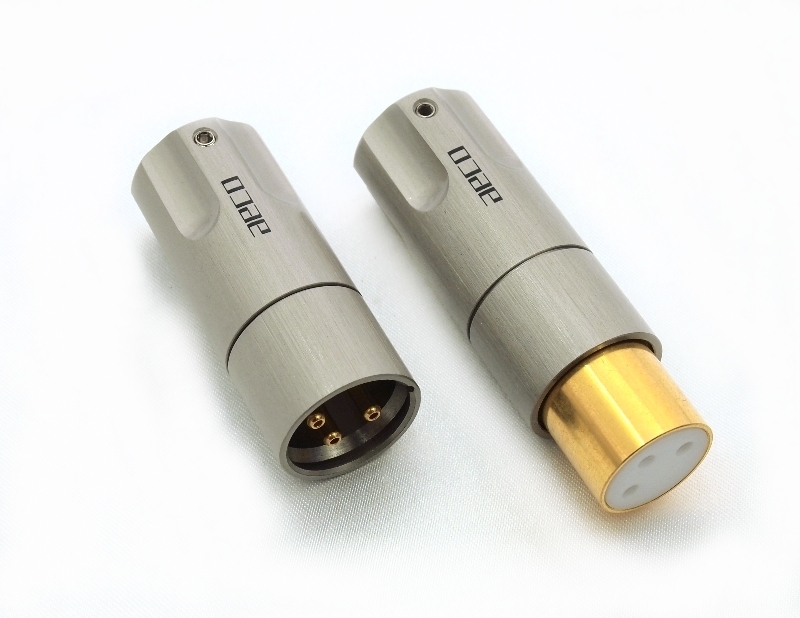

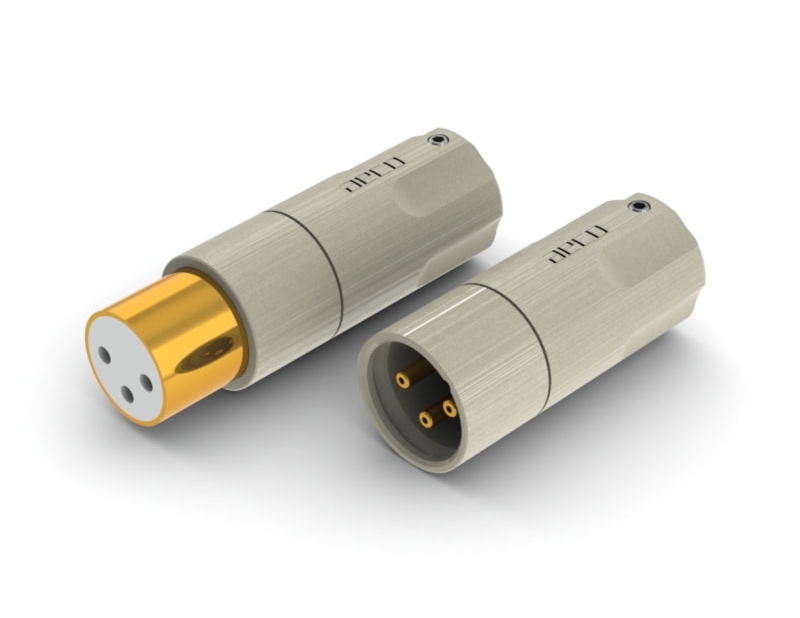

AMI-1060G (Gold-Plated) XLR Plug

TECHNICAL HIGHLIGHTS

  • The conductor is made from high- purity copper (Tellurium Copper) with 10u" Gold plating (no nickel base)
  • Non-coaxial conduction are able to use single point conduction while plug connect to jack
  • Conductor between body isolate by PTFE insulator

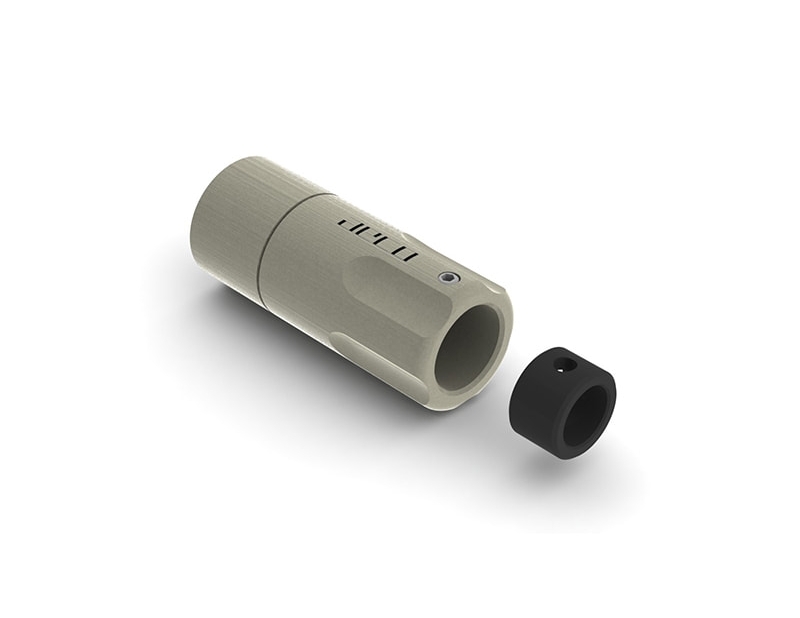

  • The cable hole can be adjusted to 8.5mm or 12.5mm through the POM sleeve
  • Hair-line surface treatment show the high quality of design techniques



Price: HKD 550.00 / (1 male & 1 Female)set

View All AECO Products

Material :
Contact pin:
Male - Tellurium copper (#C14500 / copper contains over 99%).
Female - Tellurium copper (#C14500 / copper contains over 99%)

Ground pin:
Male - Brass alloy (#C3604).
Female - Tellurium copper (#C14500 / copper contains over 99%).

Insulator: PTFE
Body:Brass alloy (#C3604).
Shell: Brass alloy (#C3604).
Sleeve: POM .
Screw: Iron.

Finish :
AMI-1060G
Contact pin: 10u" Gold plating (no nickel base).
Shell ground pin:10u" Gold plating (no nickel base).
Body:
Male - Satin Nickel + Topcoat.
Female - 10u" Gold plating (no nickel base).

AMI-1060S
Contact pin: 120u" Silver plating (no nickel base).
Shell ground pin: 120u" Silver plating (no nickel base).
Body:
Male - Satin Nickel + Topcoat.
Female -  120u" Silver plating (no nickel base).

Insulator: None.
Shell: Satin Nickel + Topcoat.
Plastic Steel: None.
Screw: Nickel plating.


Electrical Characteristics :
Contact resistance < 1.0 mOhm (It was test by Ami-1060.)

Dimension :
Biggest OD:18.9mm
Total Length:
Male: 46.0mm
Female: 59.5mm

Packing :
Vacuum Bag(1 male & 1 Female/1Set)

Recommend soldering temperature :
Temperature Soldering Iron, please keep 400 degree within 10 second
Temperature Soldering Iron, please keep 450 degree within 05 second

Product production process comply with RoHS
