SPEAKER DRIVERS 喇叭單元
SB Acoustics

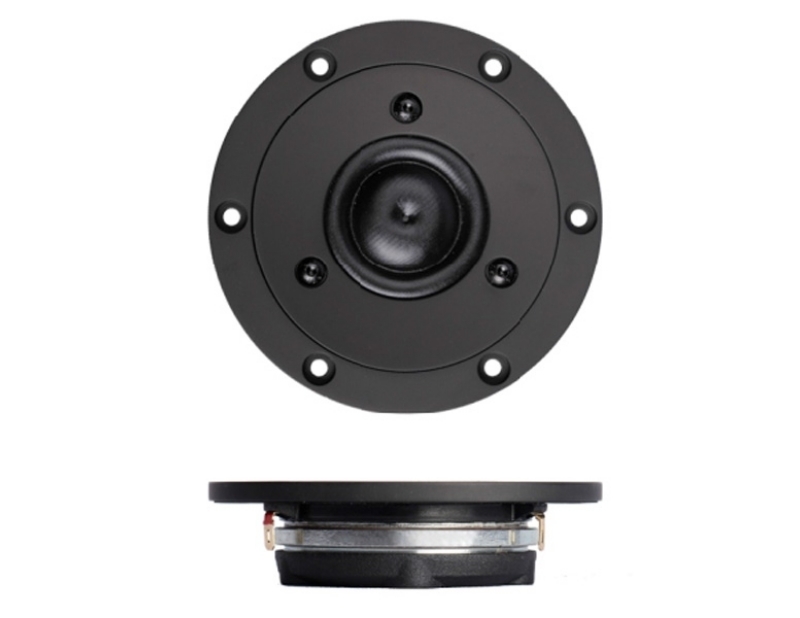

TW29RN-B (絲膜)

Satori 29mm Fabric Ring Dome Tweeter



  • Non-resonant diaphragm design for minimum high frequency break-up
  • Two part aluminium black faceplate with integrated mechanical decoupling
  • Dual balanced compression chambers for improved dynamics
  • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
  • High saturation neodymium motor system with T-shaped pole piece for lower distortion
  • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
  • Shallow flow optimized magnet structure for optimum coupling to rear chamber
  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency for extended range



Engineered in Denmark, Made in Indonesia

丹麥設計, 印尼製造



Price: HKD 1,490.00 / pc

View All SB Acoustics Products

Sensitivity (2.83V/1M) : 96dB

Nominal Impadance : 4 ohm

Frequency response :  See graph

Resonance frequency [fs] : 700 Hz

Nominal power handling RMS : 80W*

*(high-pass Butterworth, 2600 Hz, 12 dB/oct)

Magnet type : Neodymium magnet

Net weight : 0.4 kg

DOCUMENT DOWNLOAD
SATORI-TW29RN-B_spec
