TECHNICAL HIGHLIGHTS
- The conductor is made from high- purity copper (Tellurium Copper) with 10u" Gold plating (no nickel base)

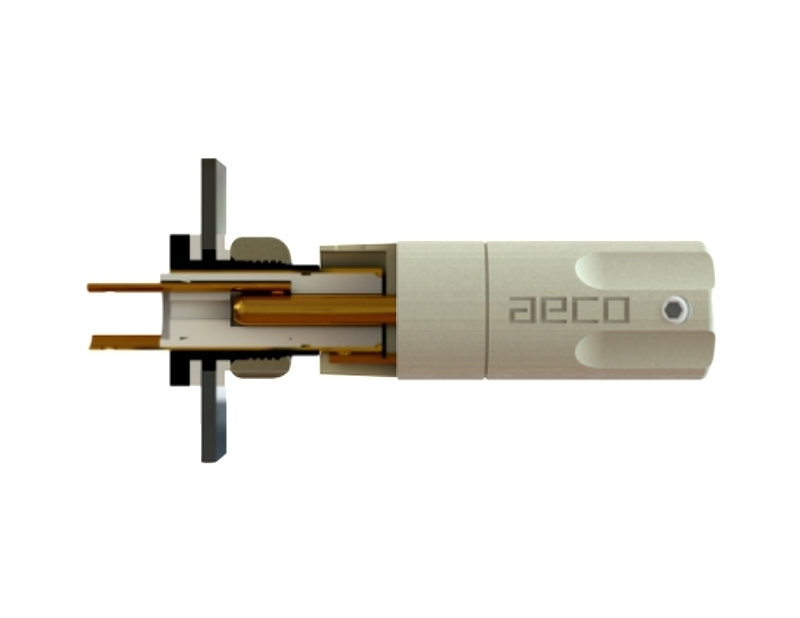

- Use one point conduction instead of coaxial conduction
- The "STAR" modeling use the characteristics of Nylon composite material can provide sufficient flexibility and clamping force when connected with the jack
- The cable hole can be adjusted to 8.5mm or 10mm through the POM sleeve
- Hair-line surface treatment show the high quality of design techniques
Price: HKD 470.00 / 4pcs-set
(20% off) HKD 376.00
Material :

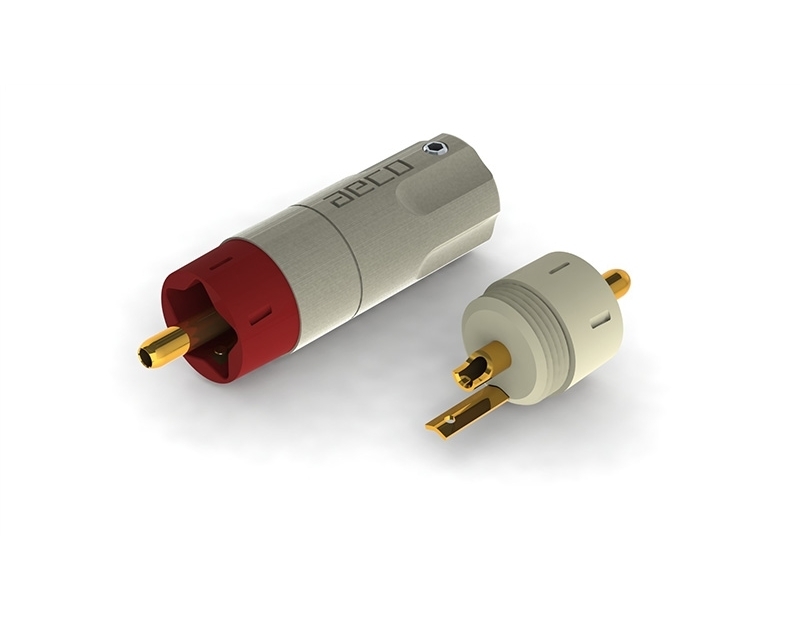

ARP-4045 / ARP-4045R / ARP-4045S
Contact Pin:Tellurium Copper(#C14500 / copper contains over 99%)
Grounding:Copper (#C1100 / copper contains over 99.5%)
ARP-4055
Contact Pin: Pure Silver (silver contains over 99.9%)
Grounding: Pure Silver (silver contains over 99.9%)
Body: Glass fiber reinforced nylon (Red / White)
Shell: Brass alloy (#C3604)
Sleeve: POM
Screw: Iron
Finish :
ARP-4045
Contact Pin: 10u" Gold plating (no nickel base)
Grounding: 10u" Gold plating (no nickel base)
ARP-4045R
Contact Pin: Rhodium plating (no nickel base)
Grounding: Rhodium plating (no nickel base)
ARP-4045S
Contact Pin: 120u" Silver plating (no nickel base)
Grounding: 120u" Silver plating (no nickel base)
ARP-4055
Contact Pin: none
Grounding: none
Shell: Satin nickel plating with hairline surface treatment
Screw: Nickel plating
Electrical Characteristics :
Contact resistance < 0.3 mOhm (It was test by ARJ-4043.)
Dimension :
Biggest OD 13.7mm
Cable hole
Sleeve is contained in finished product 8.5mm.
Sleeve is not contained in finished product 10.5mm.
Total Length 46.4mm
Packing :
Vacuum Bag(4Pcs/1Set)
Recommend soldering temperature :
Temperature Soldering Iron, please keep 380 degree within 5~8 second.
Temperature Soldering Iron, please keep 360 degree within 9~13 second.
Temperature Soldering Iron, please keep 340 degree within 13~18 second.
Temperature Soldering Iron, please keep 320 degree within 19~25 second.
Product production process comply with RoHS.
Product made new TW patent No. D158416.
