KINKI STUDIO

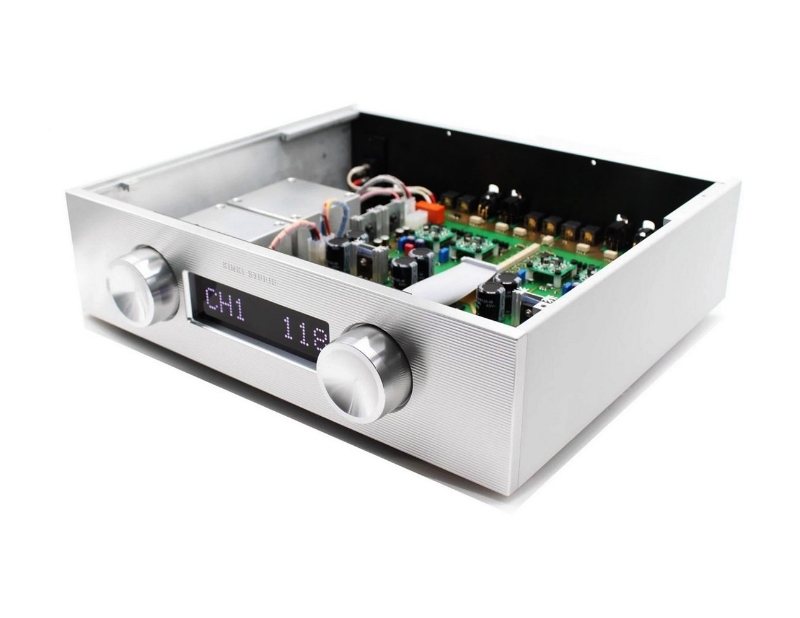

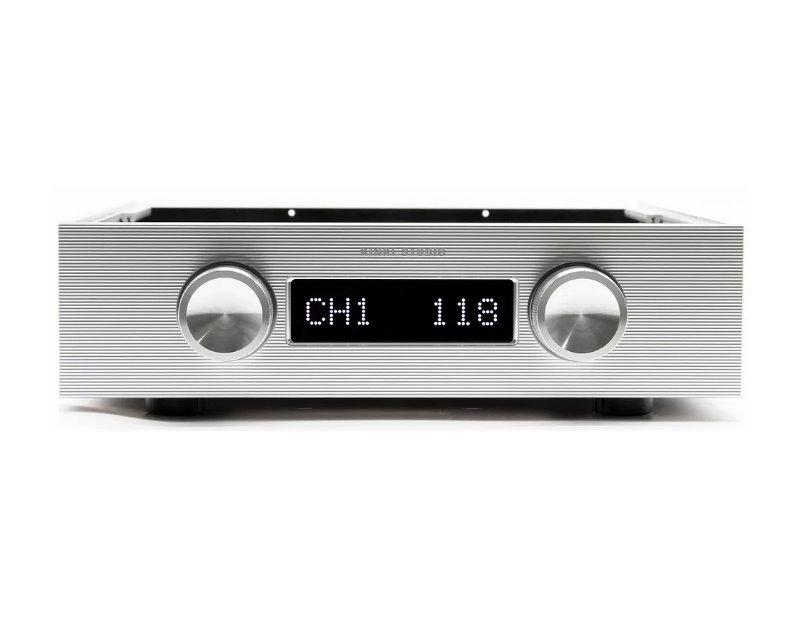

EX-P7 前置放大器

EX-P7 (Deluxe Edition)



The EX Series is tuned to reproduce sound quality with balance mid and smooth extension in both ends, high and low extension. True Class-A biased, fully discrete input and output stages are the heart of the EX-P7. Rich in tonal quality, details, and high resolution. Silky smooth volume control thanks to the discrete R2R volume control, of which known for its precise and accurate volume adjustment with precision matched resistors.



Price: HKD 12,800.00 /pc (Silver 銀色)

           HKD 13,800.00 /pc (Black 色)



View All KINKI STUDIO Products

TECHNICAL SPECIFICATION



Parameters

  • Frequency Response: 0-150kHz (±1dB)
  • THDN: 0.003% (-80dB)
  • S/N Ratio: >90dB
  • Channel Seperation: >90dB



Input / Output

  • Input Sensitivity: 2.25Vrms - 3.6Vrms
  • Input Impedance: 50kΩ

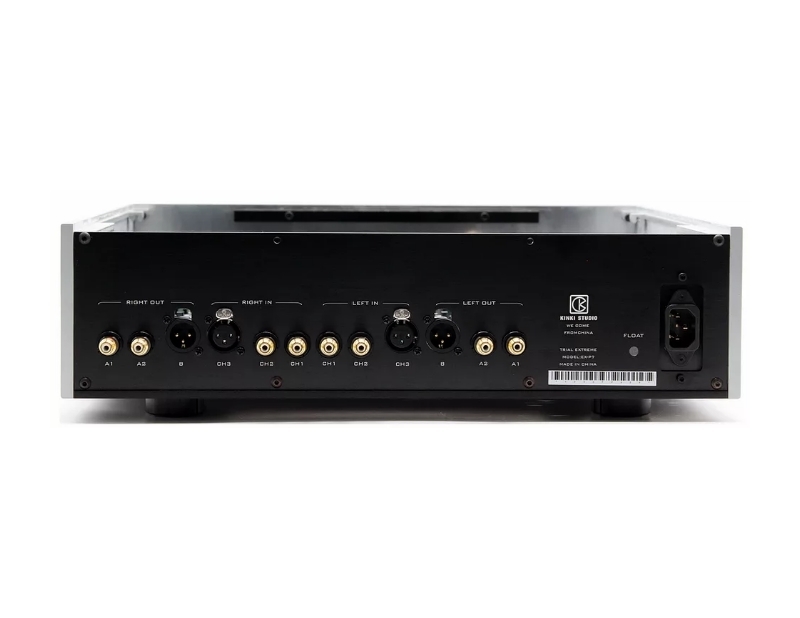

  • Input Connector: RCA x 2, XLR x 1



  • Output Voltage: 2.25Vrms - 3.6Vrms
  • Output Impedance: 75Ω
  • Output Connector: RCA x 2, XLR x 1



Dimension & Weight

  • Dimension: 430W x 125H x 370D
  • Weight: 13KG
DOCUMENT DOWNLOAD
EX-P7 Instruction Manual
