KINKI STUDIO
EX-B7 MONO 後置放大器

EX-B7 (Deluxe Edition)

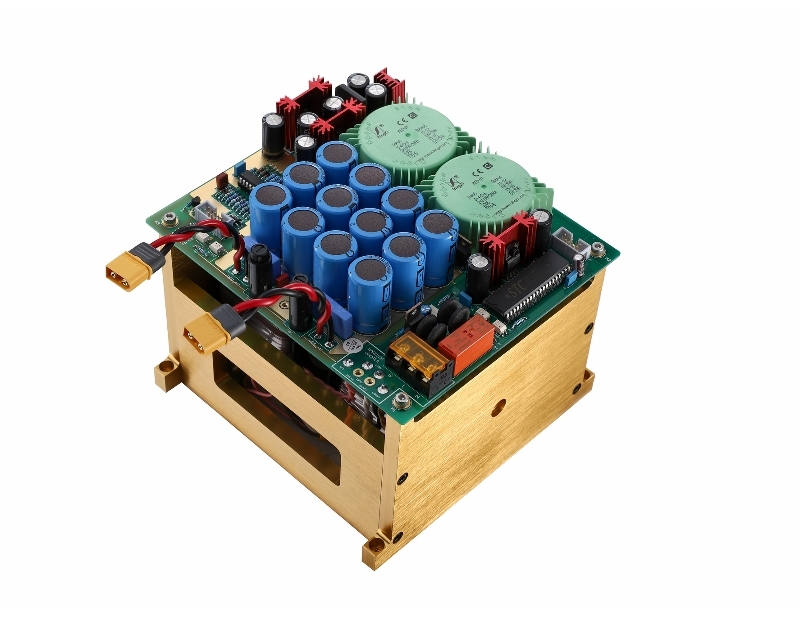

The EX Series is tuned to reproduce sound quality with balance mid and smooth extension in both ends, high and low extension. The EX-B7 is the statement monoblocks power amp. Each monoblock is equipped with dual 300VA Toroidal Transformers, 4 pairs of EXICON Laterals MOSFET and a huge power reservoir capacitors farm. It is essential doubled of what the award-winning EX-M1 offered. The good of EX-M1 remains, rich in tonal quality, details, dynamic, and high resolutions.



Price: HKD 26,800.00 /pair (Silver 銀色)

           HKD 27,800.00 /pair (Black 色)



View All KINKI STUDIO Products

TECHNICAL SPECIFICATION



Parameters

  • Frequency Response: 0-2.5MHz (±3dB)
  • THDN: <0.05% (-80db)
  • S/N Ratio: >110db(0.01Hz- 1 MHz), >130db (A-Weighted)
  • Output Power: 250 W RMS(2-8 Ohms)
  • Max Instantaneous Power: 400w RMS (8 Ohms)
  • Max Output Voltage: 84VAC, 20A
  • Slew Rate: 200 V /us (Rise Time < 300ns)
  • AC Power: 110/240VAC, 50/60Hz (Factory configure).
  • Power Consumption: 30W Idle, 600W Max Output



Input / Output

  • Input Sensitivity: 1.45Vrms
  • Input Impedance: 51kΩ (Acceptable Range 10k-52kΩ)

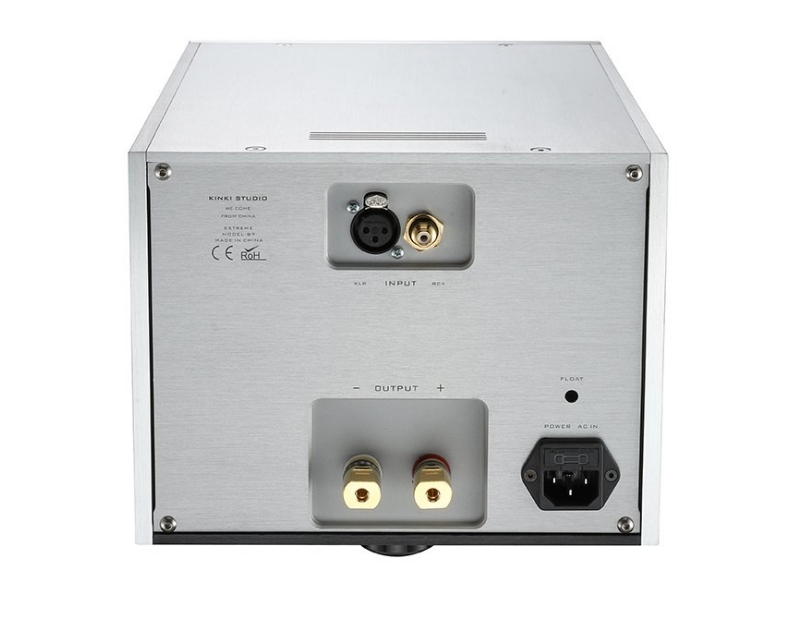

  • Input Connector: RCA x 1, XLR x 1
  • Output: Speaker Binding Post 4mm L/R Channel



Dimension & Weight

  • Dimension: 230W x 190H x 330D
  • Weight: 34KG/Pair
DOCUMENT DOWNLOAD
EX-B7 Instruction Manual
